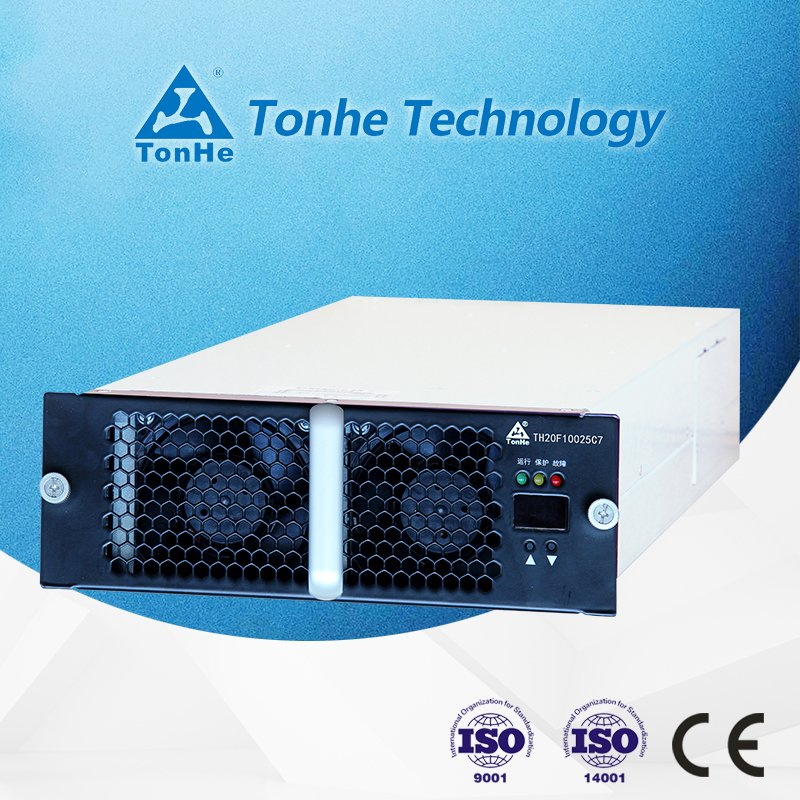

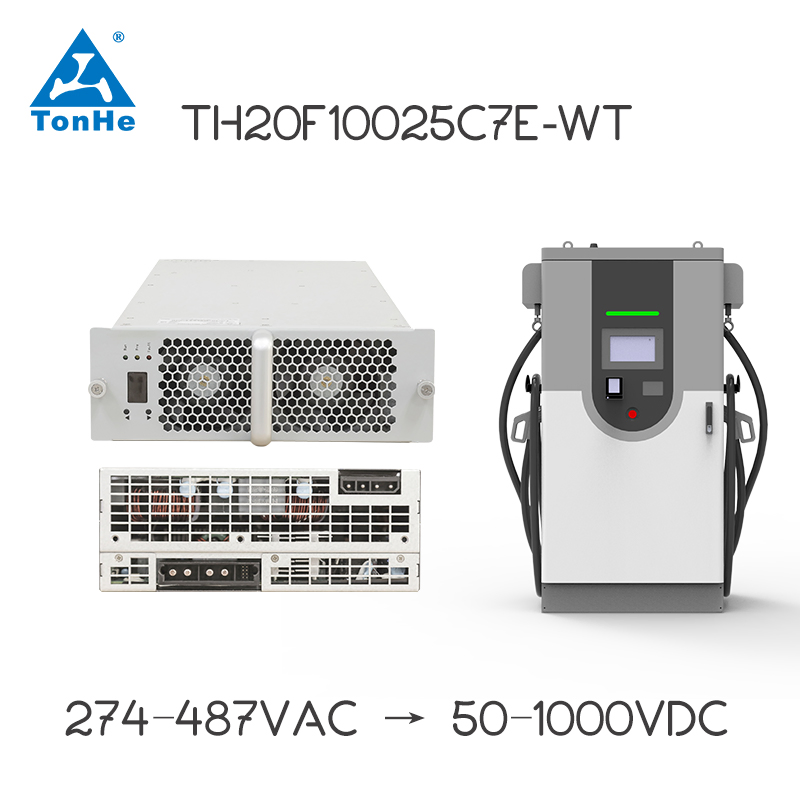

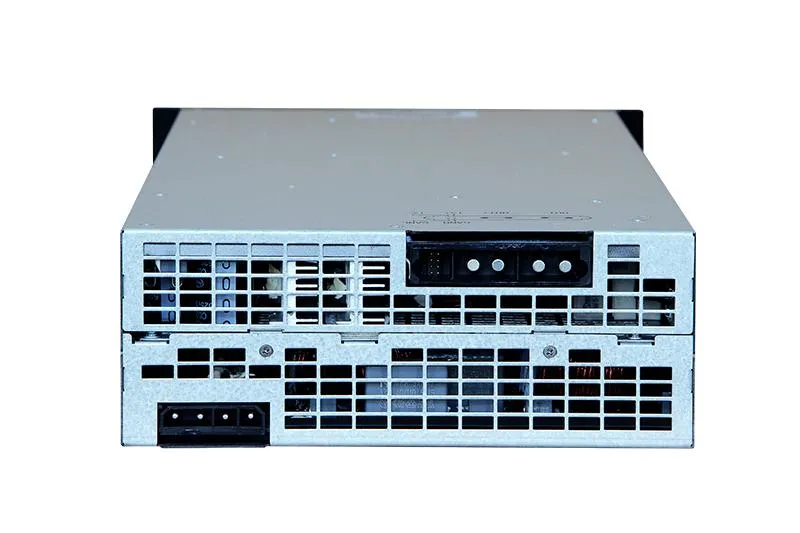

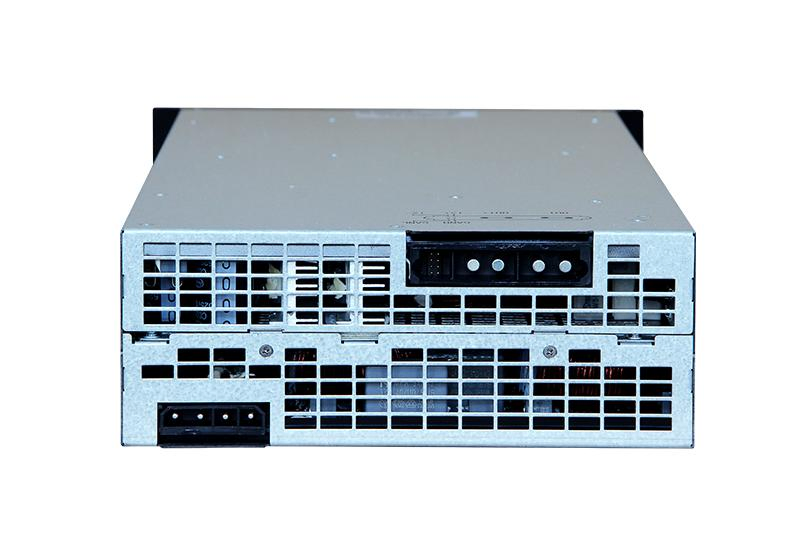

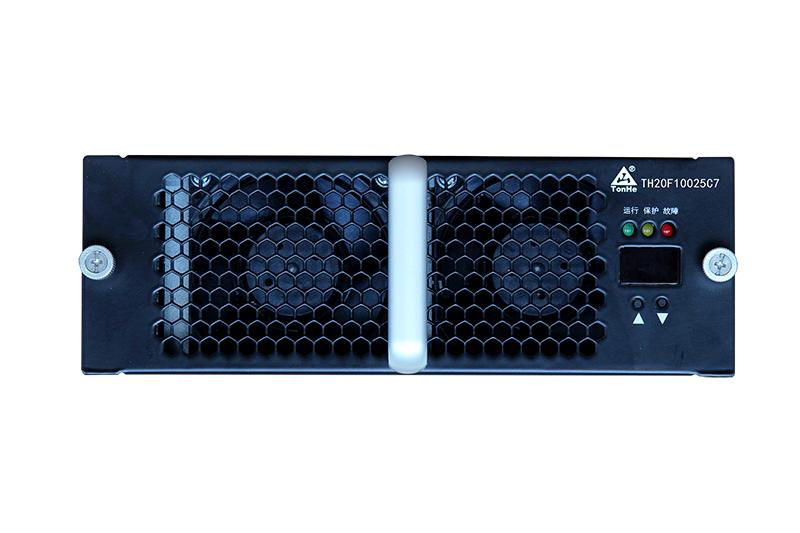

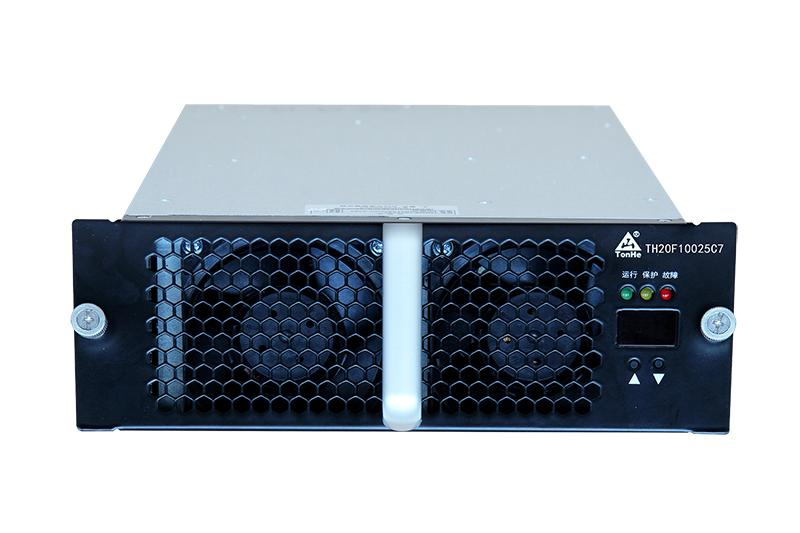

TH20F10025C7 is a high-performance charging module featuring a three-phase four-wire system (three-phase + PE) input. It supports a wide input range of 285VAC-475VAC and delivers a maximum power of 20KW with a constant power range of 250-1000VDC.
The module utilizes CAN bus communication for parameter setting, real-time operating data collection, and state control, ensuring efficient and reliable operation within DC fast charging systems.
| Item | Parameters | Remark |
|---|---|---|
| Operating Voltage (AC) | 285~475V (Rated 380V) | Constant output control |
| Input Frequency (HZ) | 45~55 | - |
| Power Factor | Full load ≥ 0.99 | - |
| THD | Full load ≤ 5% | - |
| Standby Power Consumption | < 10W | - |

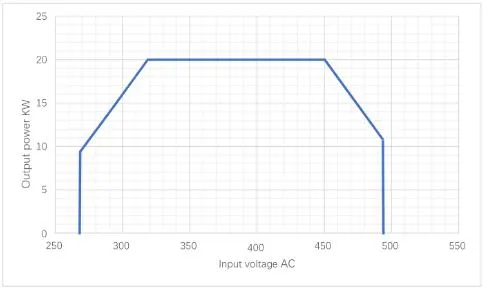

Input Voltage / Output Power Curve:
| Item | Parameter | Remark |
|---|---|---|
| Output Voltage Range (DC) | 200~1000V | Wide range support |
| Max Output Current (A) | 80 | - |
| Output Constant Power Interval | 250~500VDC, 500~1000VDC | Dual interval |
| Voltage Stabilization Accuracy | ≤ ±0.5% | - |
| Peak Efficiency | ≥ 96% | High efficiency |
| Soft Start Time (S) | 2~4 | - |
| Communication Protocol | CAN | Standard bus |

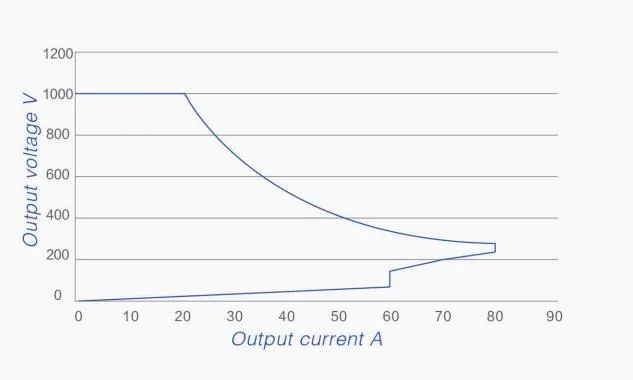

Output Voltage / Output Current Graph:
Our manufacturing and test centers are equipped with state-of-the-art technology to ensure every module meets strict international standards. We implement full-process power conversion soft switching technology.

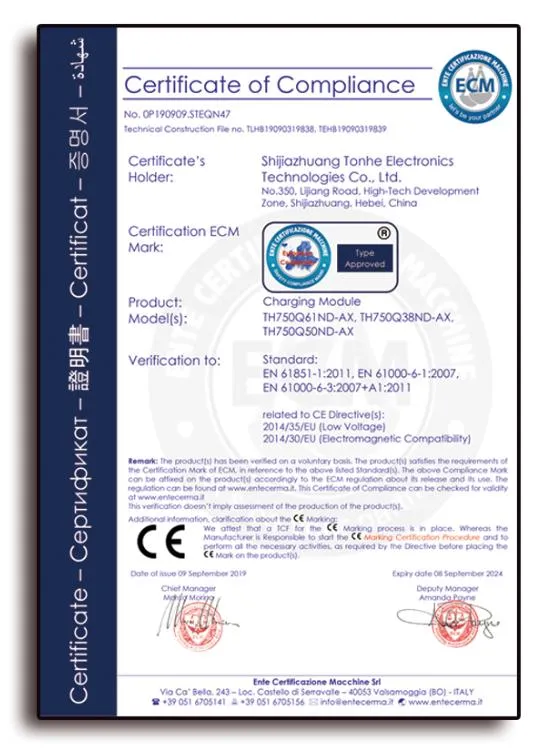

Certification:

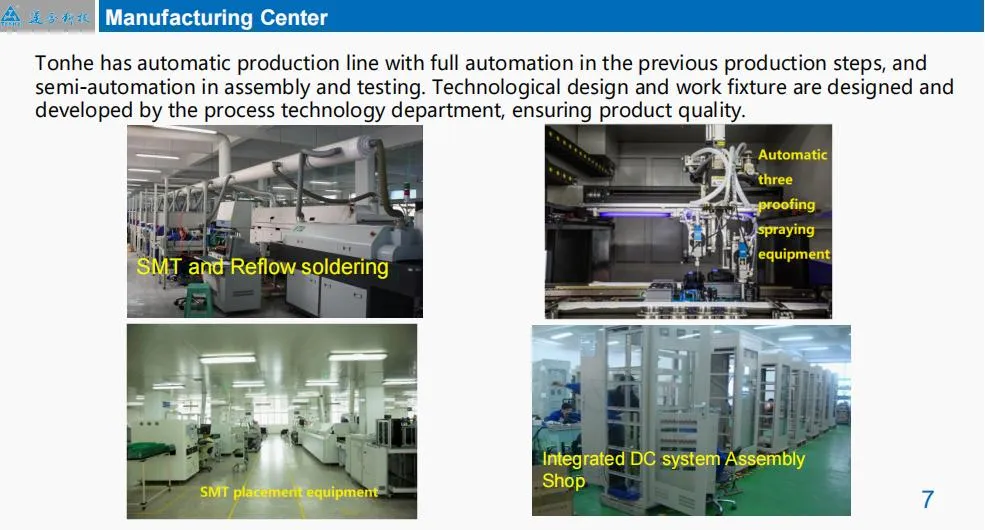

Manufacturing Center:

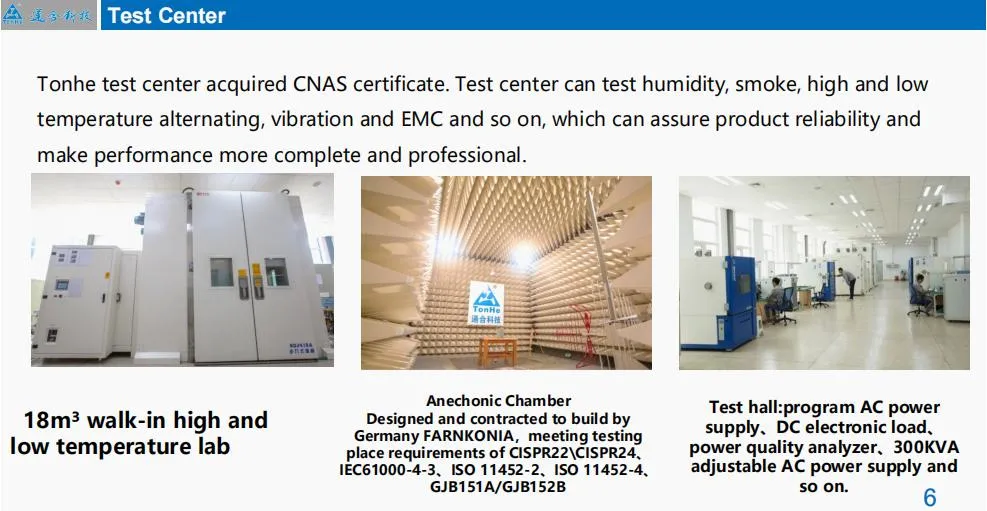

Test Center:

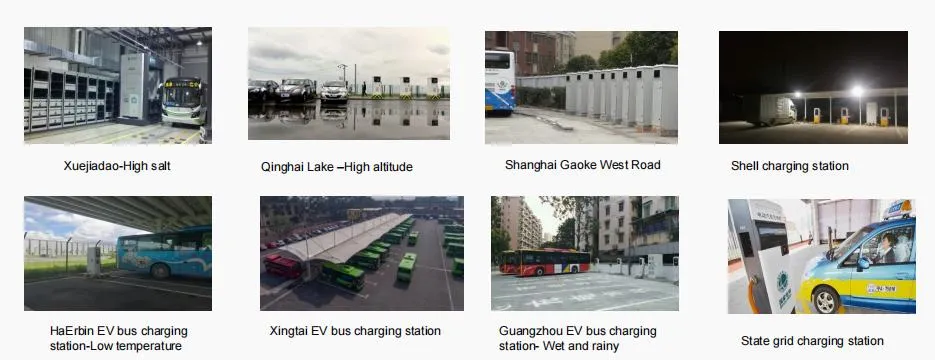

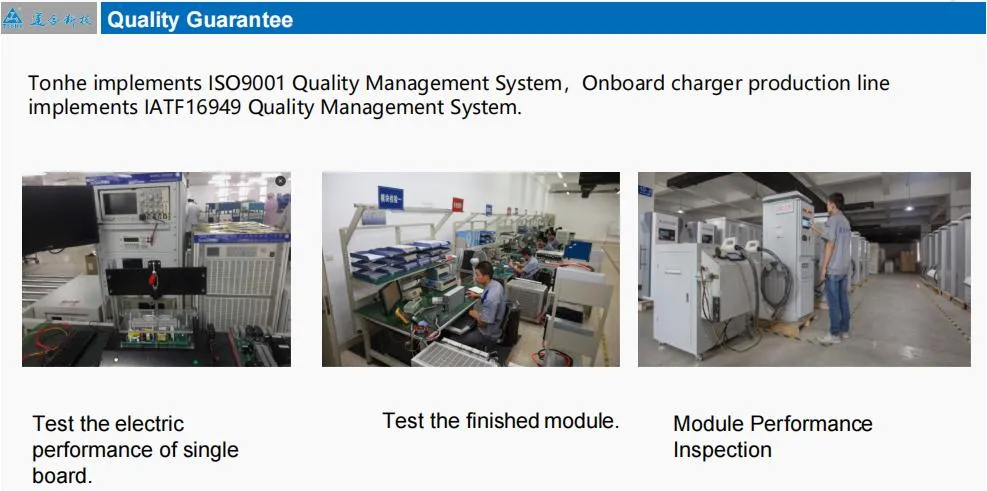

Quality Guarantee & Projects:
