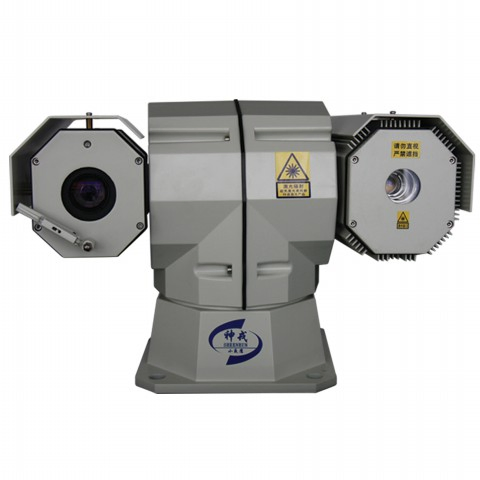

| Model NO. | SHR-HLV2020 | Horizontal Resolution | 480tvl |
| Kind | Autofocus Lens | Feature | Waterproof / Weatherproof, High Definition |
| Remote Control | Remote Control | Protection Grade | IP66 |
| Thermal Lens F Value | 1.0 | Monitor Distance | 12km |
| Laser Illuminator Power | 10W | Installation Method | Outdoor Pedestal Mounting |
| Parameter | Details | |
|---|---|---|

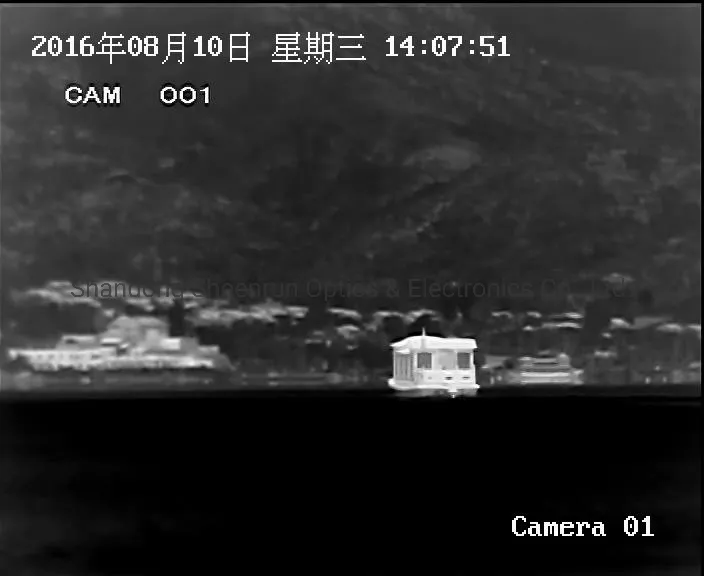

| Monitoring distance | Night vision | 1500 meters |
| Day vision | 3000 meters | |

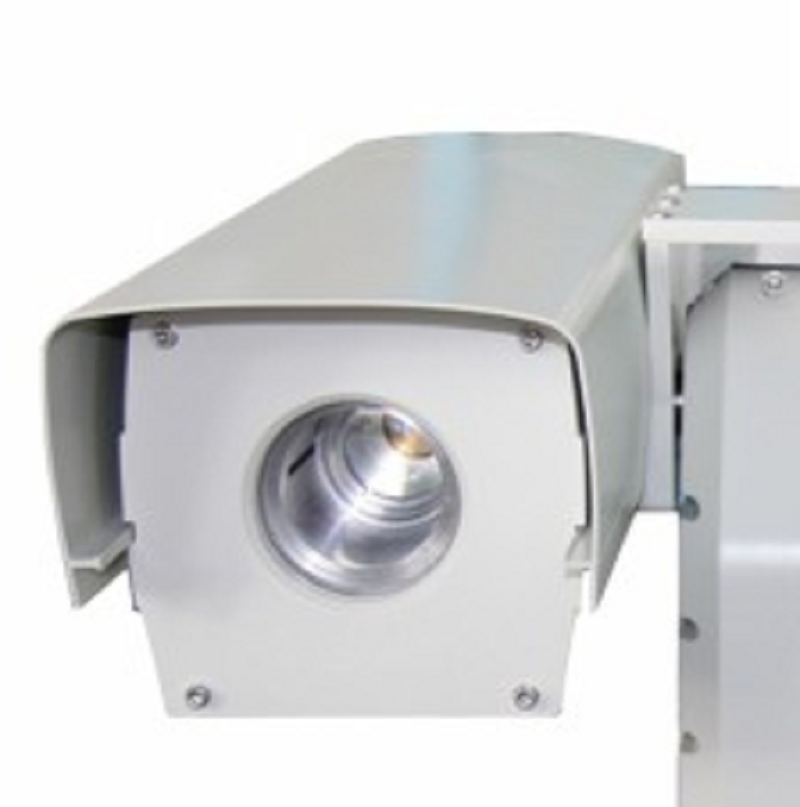

| Imaging lens | Focal length | 15.6~500mm |
| FOV | 0.8°~24.7° | |
| Camera | Sensor type | 1/1.8" Progressive Scan CMOS |
| Video resolution | 1080P, CIF, supporting three stream | |
| Video frame rate | 1~25F/S(50Hz), 1~30F/S(60Hz) | |
| Illuminator | Power | 10W |
| Wave length | 810nm | |
| Illuminating angle | 0.5°~30° continuous changing | |
| Pan-tilt | Angle | Horizontal 360° rotation, pitch -60°~+20° |
| Environment | Protection grade | IP66 |
Founded in 2004, our company is a leading night vision equipment and rugged information equipment supplier. We operate as a high-tech enterprise with dedicated research centers for night vision surveillance engineering. Adhering to independent innovation, we developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera. Our synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standards, possessing a significant global market share in the laser night vision industry.
