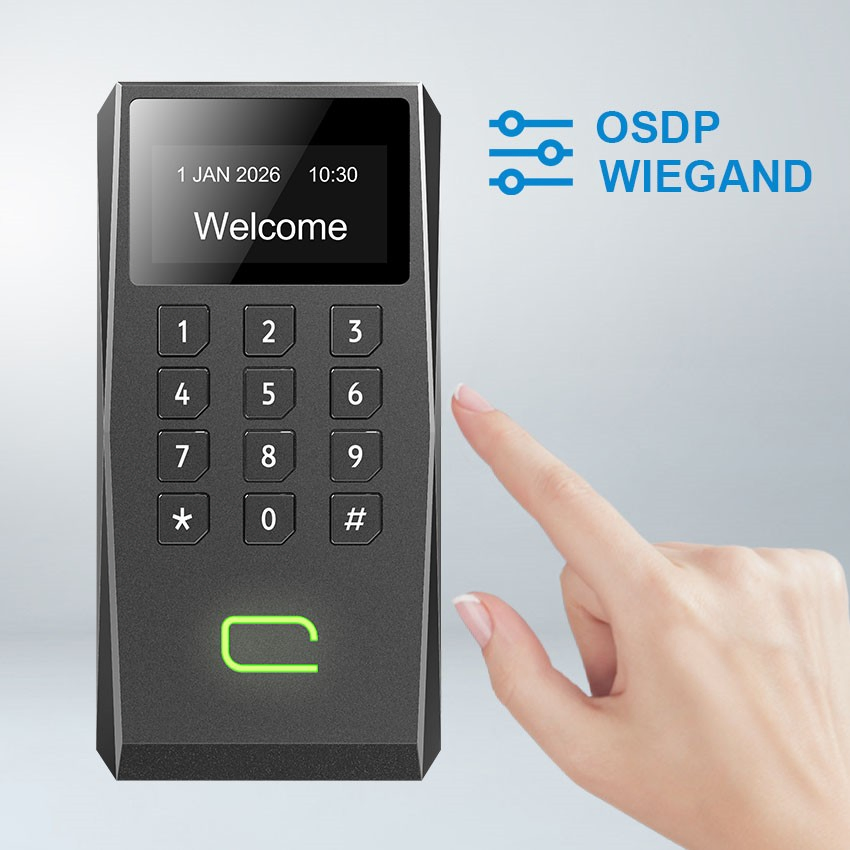

Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
1 / 5
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP
Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP

Wiegand RS485 Osdp Linux Display RFID 13.56MHz 125kHz Access Control Reader with NFC Bluetooths Mobile APP

Customization: Available
Type: IC Card Reader
Card Type: CPU, EM, BLE, NFC, DESFire EV2
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CK5
Interface
Serial Port, Wiegand, RS485 Osdp
Reading Distance
1-10cm
Application
Parking, Hospital, Library, Company, Bank, Store, Access Control
Product
Access Control Reader
Display
2.4 Inch OLED Display
Keypad
Mechanical Keypad
Identification
RFID, NFC, BLE Mobile ID, Pin Code
RFID Card
13.56MHz 125kHz
Secure Module
Sam AV2
Power Supply
9-30VDC
IP Protection
IP65 Waterproof
Tamper Alarm
Yes
Origin
China
📝 Product Description

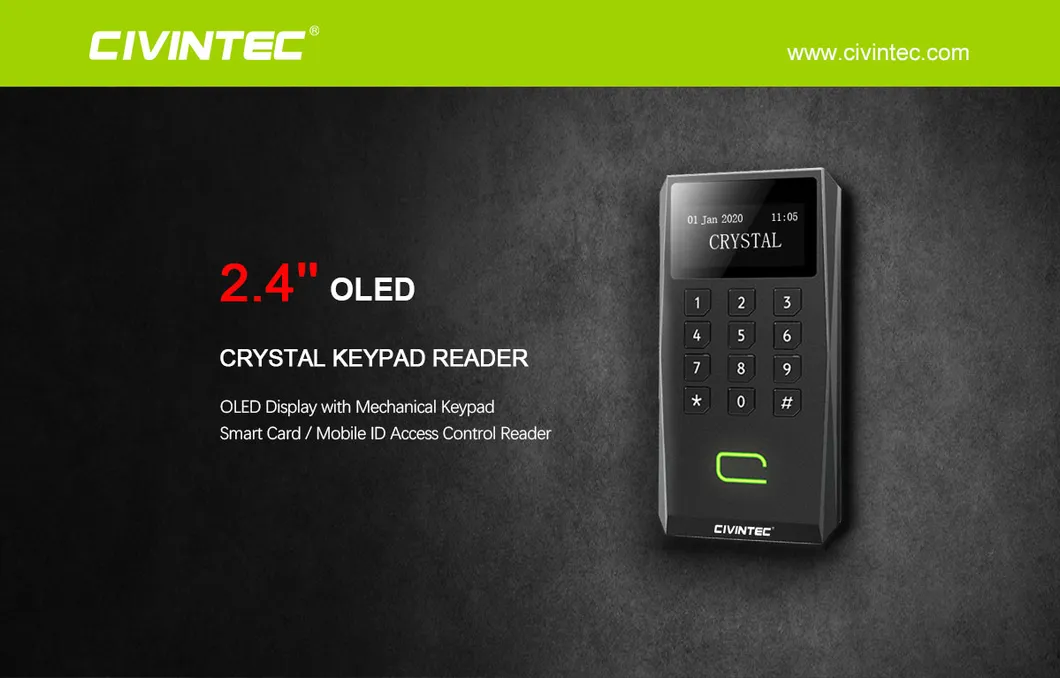

Access Control Reader Overview

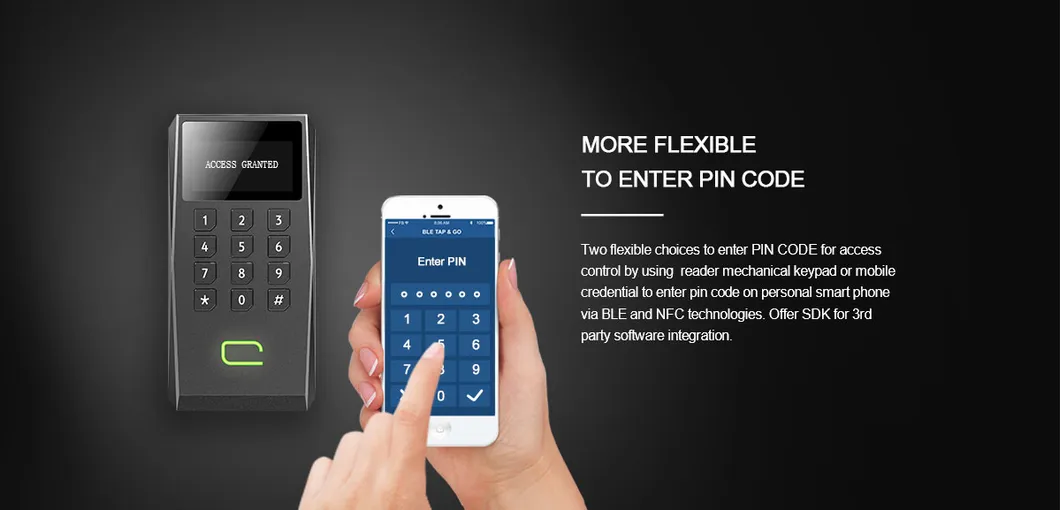

Wiegand RS485 Osdp Display
RFID 13.56MHz 125kHz Reader
CRYSTAL KEYPADCK5-MX-X
ISO-protocol13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC, 125KHz
Contactless cards- 125KHz Prox, EM4100, EM4200
- Mifare S50/S70, Ultralight® (C), DESFire® EV1/EV2, Mifare® Plus S, X
- NFC forum tag T2T, T4T
Mobile IDISO18092 NFC, BLE
Secure Access ModuleISO7816 Standard Mini Card Slot, MIFARE SAM AV2
Display2.4" OLED, 128x64 white characters on black background
Keypad12 digit keypad in 4 rows of 3 keys with white LED backlit
Communication interfacesRS485, OSDP, Wiegand 24-1024
IndicatorLED and buzzer control, Red, Green, Yellow Status Indicators
Ingress ProtectionIP65
Operating temperature-40ºC~+60ºC (with thermostat controlled heater)
CertificationCE, RoHS

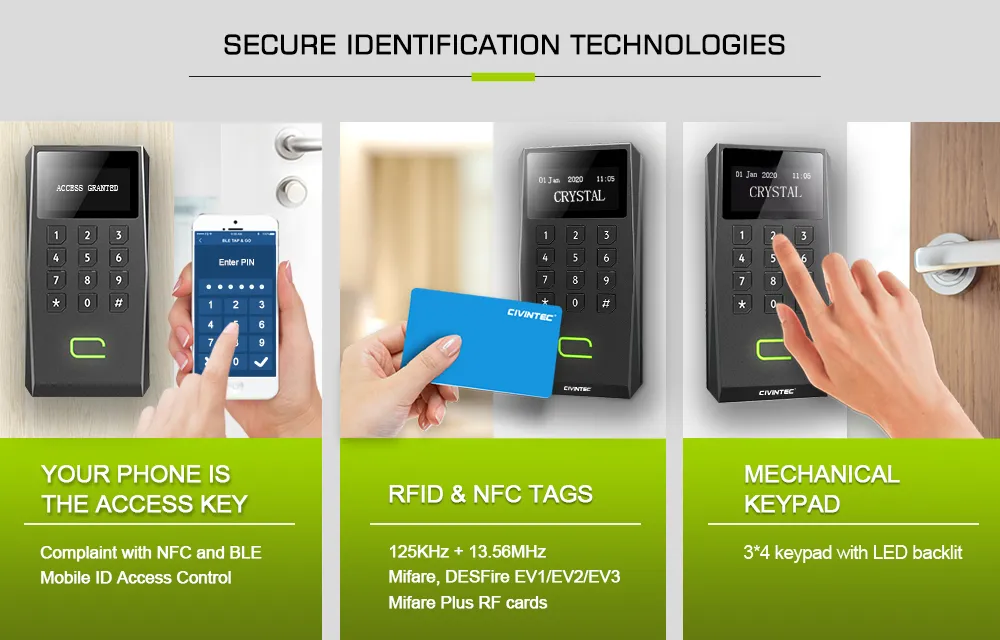

Mobile App Integration

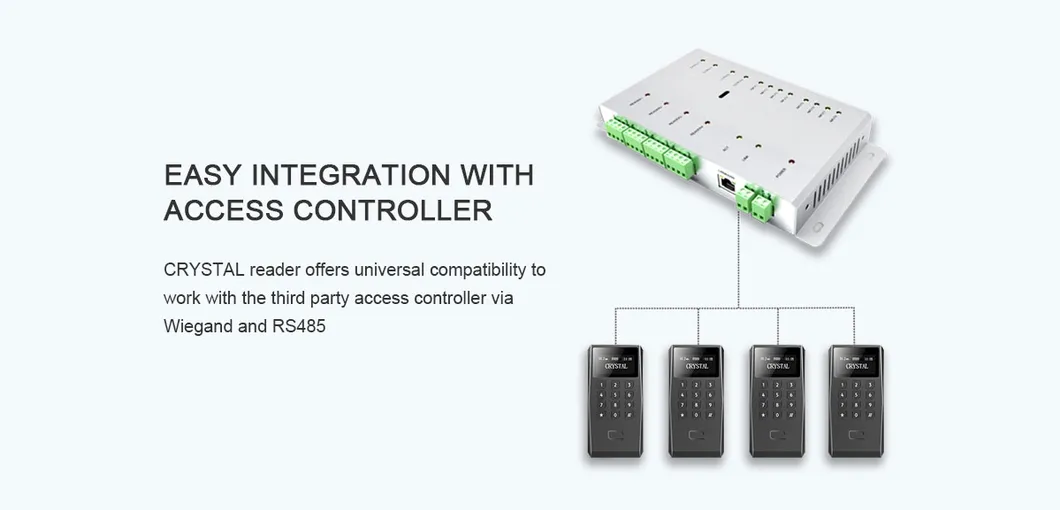

Access Control System
NFC Bluetooth Support

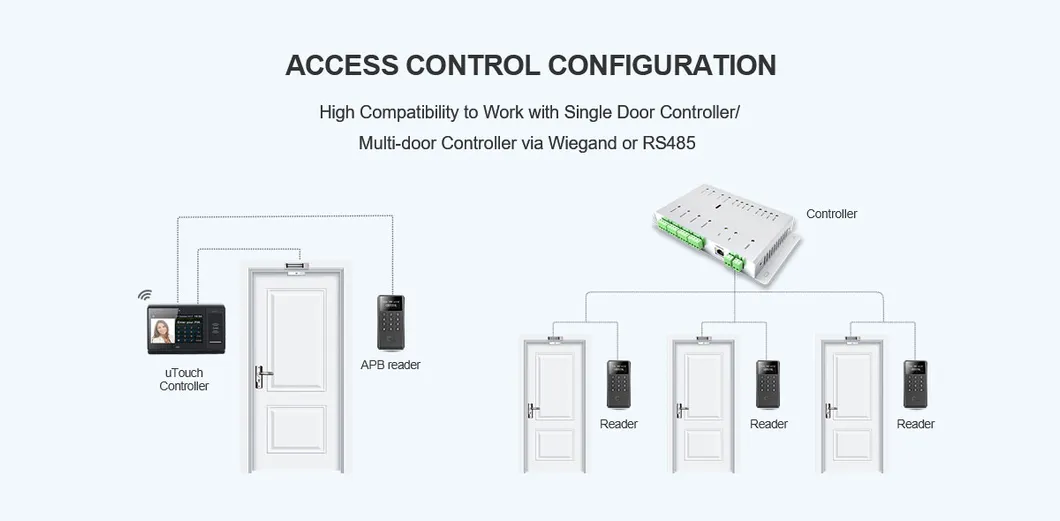

Technical Layout 1
Technical Layout 2
Detailed Dimensions Mounting Guide Wiring Diagram Interface Specifications
❓ Frequently Asked Questions
What types of RFID cards does the CK5 reader support?
The CK5 is a dual-frequency reader that supports both 13.56MHz (Mifare S50/S70, DESFire EV1/EV2, NFC tags) and 125kHz (Prox, EM4100/4200) technologies.
Is the device suitable for outdoor installation?
Yes, the CK5 features an IP65 ingress protection rating and can operate in temperatures ranging from -40ºC to +60ºC thanks to its built-in thermostat-controlled heater.
Does the CK5 support mobile identification?
Yes, it supports Mobile ID via ISO18092 NFC and BLE (Bluetooth Low Energy) for smartphone-based access control.
What communication interfaces are available for integration?
The reader supports multiple industry-standard interfaces, including RS485, OSDP, and Wiegand (24-1024 bit), ensuring compatibility with most controllers.
What are the display and keypad specifications?
It features a 2.4-inch OLED display with white characters on a black background and a 12-digit mechanical keypad with adjustable white LED backlighting.
Is there a security mechanism against tampering?
Yes, the reader includes a built-in mechanical tamper switch that triggers an alarm if the device is opened or broken off from its mounting.
